Quick green harvesting.
The CA 20 model, with tractor hitch below the PTO, is ideal for farms requiring a stable machine on steep slopes.
The cutting position is hydraulic.
All machines are equipped with an independent hydraulic pump (to make hitching to the tractor easier) and a PTO shaft with freewheel and clutch as standard that drives the rotary scythe with a cutting width of 1860 mm.

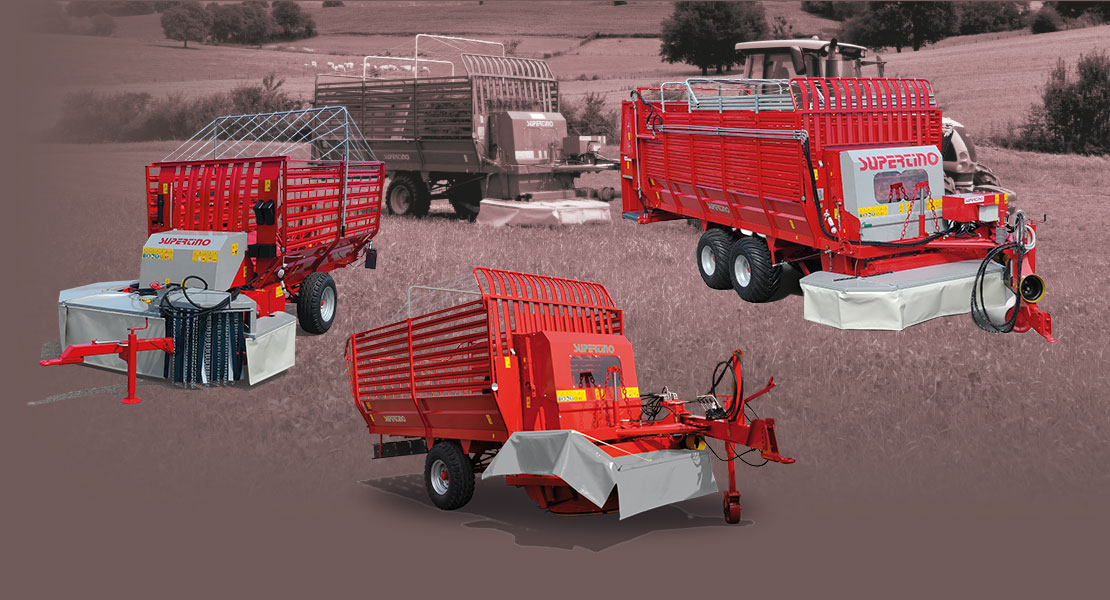

The CA 40 - CA50 - CA60 - CA70 - CA100 - CA110 models, with tractor hitch above the PTO, are equipped as standard with a hydraulic loading conveyor and a Discharge conveyor belt that can be adjusted to a variable speed.
The mechanically driven rotary scythe is independent of the frame and equipped with a suspension system. These features allow the mowing unit to adapt perfectly to changes in slope for a uniform cut across the entire area.
STANDARD EQUIPMENT:
1 CUTTING MACHINE / LIFT
• Cutting width 186 cm
• Hydraulic loading elevator, width 128 cm or 215 cm
• One blade on elevator
• Spring shock absorbers on rotary cutter and elevator
2 TRANSMISSION
• Built-in hydraulic system
• Drawbar opening and closing on tractor hydraulic sockets
• Hydraulic rear unloading
• Tractor coupling via PTO
• PTO shaft with clutch and freewheel
• Controls with flexible cables
3 MISCELLANEOUS
• Support foot with wheel
• Rear door with mechanical opening and closing
• Wear disc provision for cutting height adjustment
